WELDER MIG 315 AMP MULTI PROCESS COMPACT STRATA
ADVANCEMIG315C
Machines
Description
SHIPPING NOTE: Bulky Item - inquire for freight price

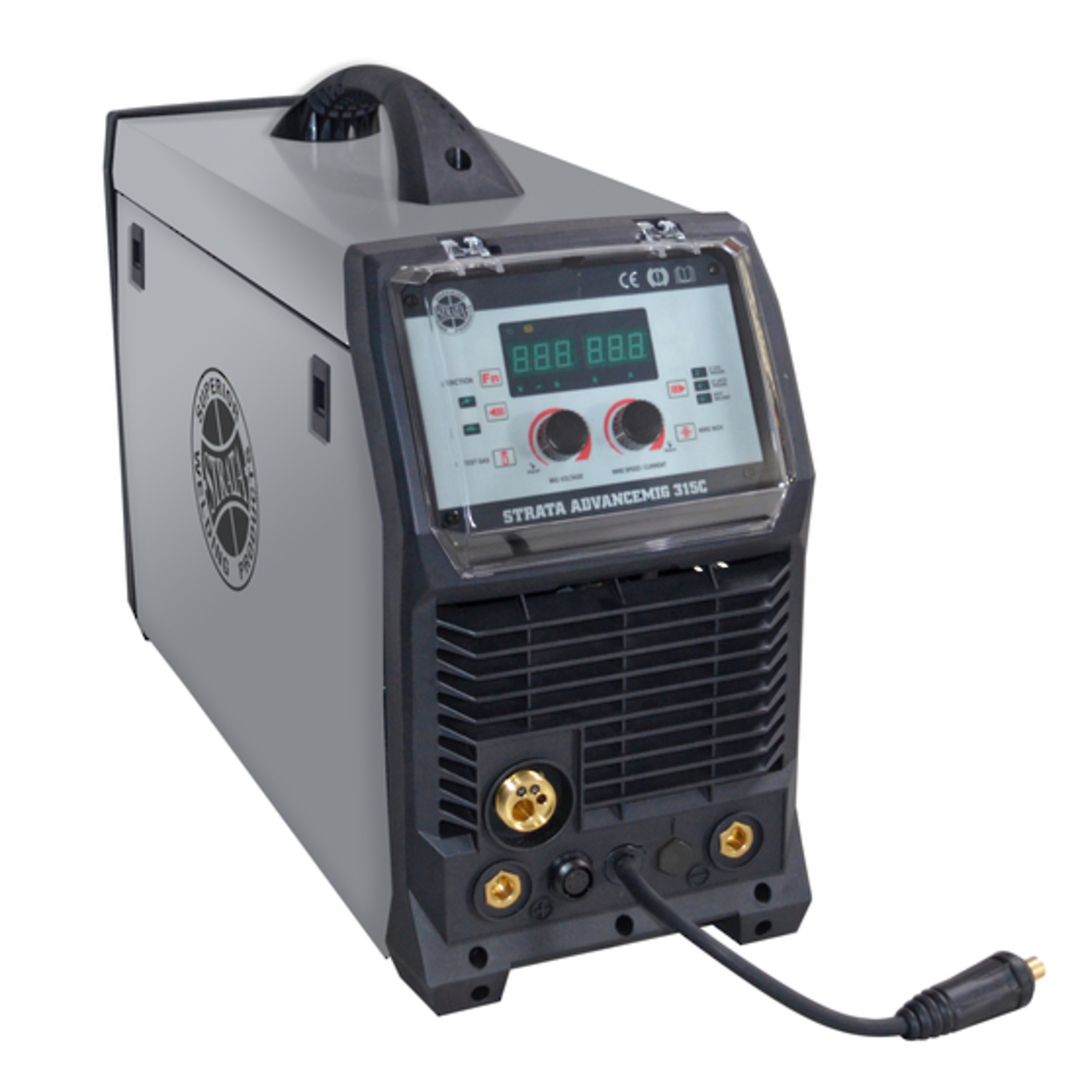

AdvanceMig315C - 315A Compact Inverter MIG/MMA Welder
This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a wide range of jobs. Built tough with intelligent protection system to withstand the harshest of environments in the NZ workplace. A must have for todays industrial professional.
IGBT Module inverter technology for smooth & stable welding output, increased reliability and high duty cycle
4-Roll geared metal wire feed unit provides a powerful and smooth wirefeed.
Digital microprocessor control system with superior & dynamic arc characteristics
Remote control spool gun connection gives effective results welding soft wires such as aluminium
Lightweight and compact design - ideal for portable applications.
MIG waveform (inductance) gives good control of the arc for smooth welding results
Industrial IP23 casing with front panel protection, resits damage, moisture and corrosion.
Great control MIG welding with adjustable pre-flow, post flow, burn back and soft start settings
Extreme stress tested in production up to 550V ensuring rugged reliablity
2T/4T trigger operation with crater control settings
Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
Designed to work with generator power supply with protection from power surges.
Reversible polarity MIG welding operation - suitable for gas & gasless welding.
Specs
Dimensions
- 680x240x450mm
- 26kg
- 400V AC 32A 3 PHASE 50/60Hz
- <177>±20%
- 20A
Mig Output Voltage
- 14.8 - 30V
- 15A - 315A
- 315A @40%, 200A @100%
- V Groove: 0.6/0.8/0.9/1.0/1.2mm, Knurled: 0.8/0.9/1.0/1.2mm, U Groove: 0.8/1.0/1.2mm
- D200/D300 5kg/15kg
- 2.4 - 18m/min
- 10A - 315A
- 70V
- 315A@35%, 195A@100%
- IP23
- EN60974-1:2012
- 2.4 - 6.0mm
- Commercial 12 month extends to 36 months with product registration
- 85%
- 0.7
3m Earth Lead with heavy duty earth clamp
4m MMA lead with heavy duty twist lock electrode holder
Professional MIG Torch
NZ/Australia Argon Gas Regulator
CO2 Cylinder Adaptor
4m Gas Hose
Gas Inlet Quick Connector,
Gas Hose Clamp
Wire Drive Roller <145>‘v<146>’ groove (0.6-0.8mm & 0.9-1.0mm)
Wire Drive Roller flux cored (0.8-0.9mm)
